KN39 MINI DC-24V
Sector:
| Name | TYPE | P1 (kW) | DN (BSPP) |
Qmax 5500rpm | Hmax 5500rpm |
|---|---|---|---|---|---|
| KN39 MINI DC-24V | DC 24V | 0,18 | 1/8" | 5,5 | 55 |
P1 = potenza assorbita
Characteristics
For clear waters/oils and non-aggressive dilutions, without abrasive substances.
Continuous duty S1.
DC Brushless motor, Sensorless type, without electronic control board.
Insulation class F.
Protection IP54.
Working tolerance: +/-10%.
Water dilutions temperature (with anti-freeze additive) -20°C / +90°C, oil emulsions -20°C / +120°C.
Limit ambient temperature: -10°C/+40°C.
Not self-priming.
High efficiency.
Long lifetime.
On request
DN 1/8 NPT
Electronic control board for DC motor.
| Materials | |
|---|---|
| Body | CuZn |
| Impeller | PEEK |
| Shaft | AISI430 |
| Weight |
|---|
| 1,2kg |

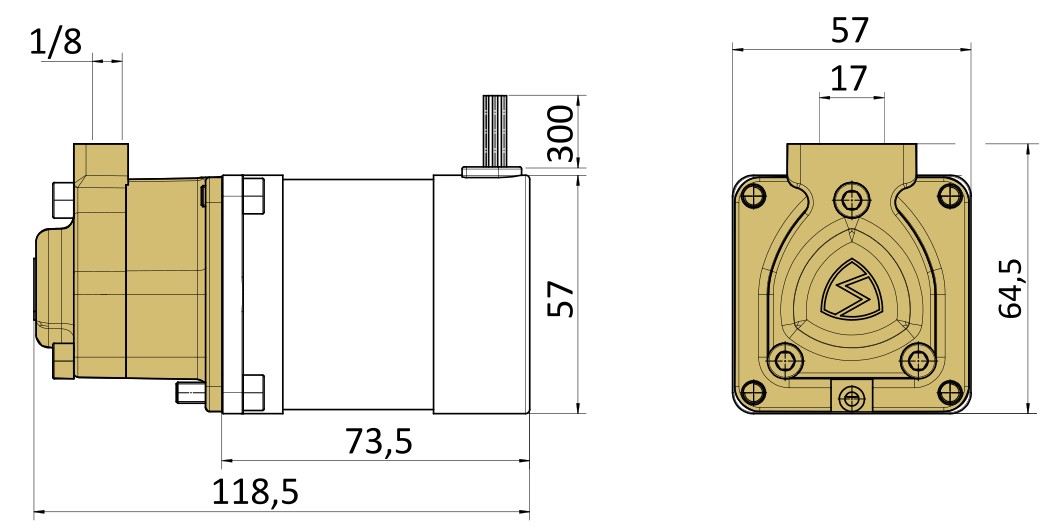

Dimensions
Performance
Tolerance according ISO 9906-2012.
Hydraulic characteristics for water 20°C at nominal pump speed.
